PRODUCT MODEL

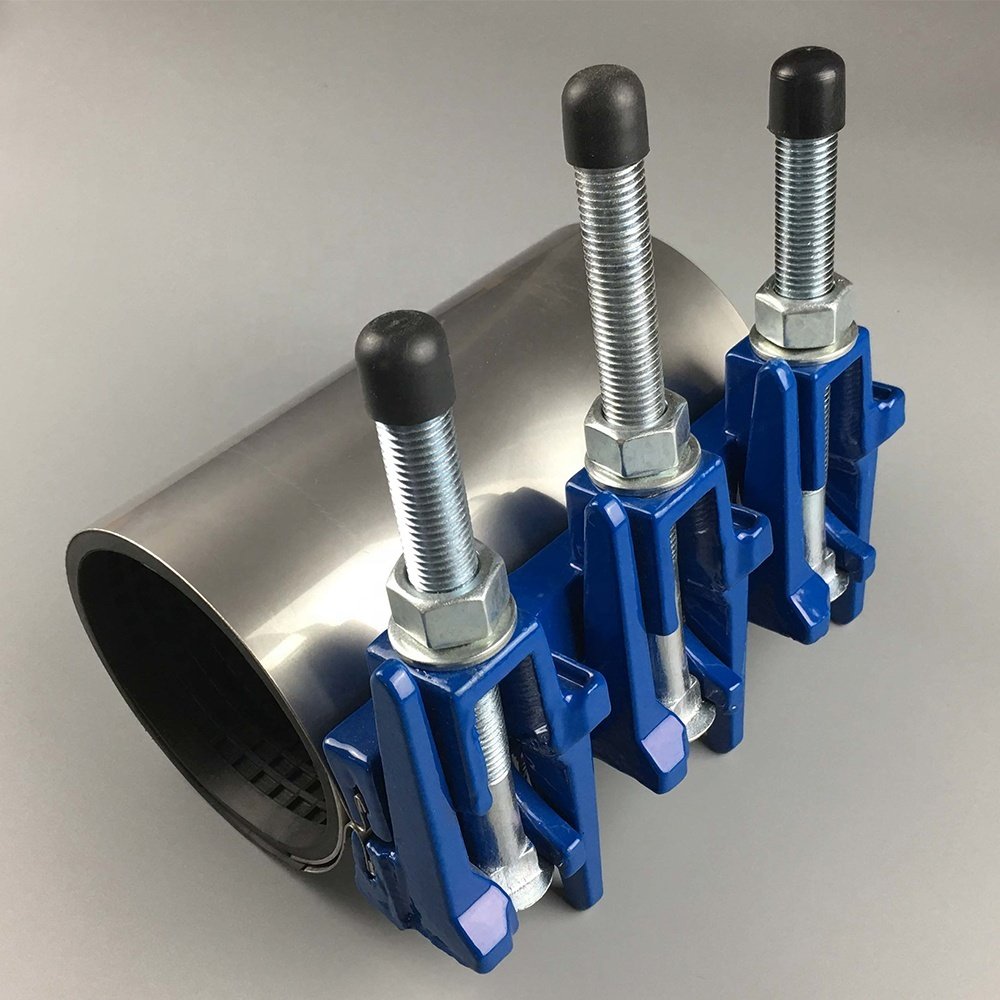

Single Band Pipe Repair Clamp
A single band pipe repair clamp is a wrap-around stainless steel clamp designed to seal localized leaks on existing pipelines without replacing an entire pipe section. A one-piece metal band closes around the pipe while a rubber gasket is compressed against its outer surface. This design is commonly considered for pinholes and short, localized cracks in compatible water piping systems.
Correct selection starts with the pipe’s measured outside diameter (OD), not nominal diameter (DN) alone. Pipe material, damage size, operating pressure, fluid, and installation conditions all matter.
How Does a Single Band Pipe Repair Clamp Work?
The stainless steel band wraps around the damaged section of pipe. When the fastening bolts are tightened to the approved torque, the band compresses the elastomer gasket against the pipe surface to create a circumferential seal around the leak. The gasket must extend beyond the damaged area onto sound pipe surface.
A single-band repair clamp is a sealing component, not a substitute for a structurally sound pipe or an axial restraint device. Pipes with extensive corrosion, major deformation, or complete separation require a separate engineering assessment.
Key Features
- One-piece band: a single wrap-around shell suited to selected pipe diameters and access conditions.
- Stainless steel construction: corrosion-resistant band materials can be specified according to the installation environment.
- Elastomer sealing: the gasket compresses against the pipe exterior to cover localized defects.
- Bolt-on installation: mechanical fastening avoids cutting out an entire pipe section in suitable repair situations.
- Size-dependent selection: the correct OD range and clamp length are chosen for the actual pipe and damaged area.
Technical Specifications and Ordering Options
The table below describes common single-band repair clamp configurations. Exact materials, available sizes, pressure ratings, and fastener details must be confirmed against the approved model drawing before an order is placed.
| Item | Specification / Selection Guidance |
|---|---|
| Product type | Single-band, full-circumference mechanical pipe repair clamp |
| Band material | Stainless steel; AISI 304 is common, with AISI 316 to be confirmed for the required model |
| Sealing gasket | EPDM for compatible water service; NBR or another compound only after media compatibility is checked |
| Bolts and lugs | Material, bolt count, and tightening torque depend on the selected construction |
| Pipe size | Match the clamp’s stated OD range to the measured outside diameter of the pipe |
| Clamp length | Select enough axial coverage for the defect and sound sealing surfaces on both sides |
| Pipe compatibility | Steel, cast iron, ductile iron, and selected plastic pipes, subject to model approval |
| Working pressure | Confirm the rating for the exact clamp size, pipe material, temperature, and service |
| Typical service | Water distribution, irrigation, and compatible plant piping applications |
Typical Applications
- Localized pinhole leaks in municipal water distribution pipes.
- Short, accessible cracks in irrigation and utility water pipelines, when approved for the defect.
- Maintenance of compatible steel, cast iron, or ductile iron service pipes.
- Planned repairs to selected industrial water lines after confirming pressure and gasket compatibility.
Suitability depends on the condition of the pipe. A repair clamp should not be assumed suitable for a completely broken pipe, significant wall loss, pipe pullout, or uncontrolled movement.
How to Select the Right Clamp
- Measure the pipe OD. Record the actual outside diameter in millimeters. Pipes with the same DN designation can have different outside diameters.
- Describe the defect. Provide the leak type, crack orientation, damaged length, and photos where available.
- Confirm operating conditions. Share working pressure, possible pressure surges, fluid, and temperature.
- Identify the pipe material. Specify steel, cast iron, ductile iron, PVC, or another material, including its condition.
- Check access and clamp length. Allow room for the band, bolts, installation tools, and sound sealing surfaces.
Installation Overview
Use the installation instructions supplied for the approved clamp model. As a general sequence, isolate and depressurize the line unless a specific engineered procedure expressly permits another method; inspect and clean the pipe surface; place the gasket over the defect; tighten the bolts evenly to the specified torque; then restore pressure in a controlled manner and inspect for leakage. Do not apply a generic torque value to every model.
Frequently Asked Questions
Does “single band” mean the clamp has only one bolt?
No. “Single band” describes the single wrap-around band or section. The number of bolts varies with the clamp design and dimensions.
Can a single band repair clamp be used on PVC pipe?
Some models are suitable for PVC and other plastic pipes, but the clamp must be approved for the pipe material, measured OD, pressure, and installation torque. Plastic pipes may need additional precautions.
What is the difference between EPDM and NBR gaskets?
EPDM is commonly chosen for compatible water applications. NBR may be considered for some oil-containing fluids, but actual chemical, temperature, and pressure compatibility must be checked before selection.
Can the clamp be installed while the pipeline is under pressure?
Do not assume so. Follow the exact manufacturer’s installation instructions and site safety procedure. Unless an approved procedure specifically allows pressurized installation, isolate and depressurize the line first.
Is a repair clamp a permanent repair?
That depends on the approved clamp design, defect, pipe condition, and service conditions. The maintenance engineer should determine whether the repair is suitable for continued operation or if pipe replacement is required.
Request a Quote for Single Band Pipe Repair Clamps
For a technical quotation, please send the measured pipe OD, pipe material, leak dimensions, working pressure, fluid, temperature, required quantity, and delivery destination. Drawings or site photos are helpful when available.
Request a Quote or contact LEEVOA PIPE to discuss your repair clamp requirements. You can also explore our pipeline connection products.
